80807211 ΑΝΤΛΙΑ ΚΕΝΟΥ 90 lt two-stage vacuum pump 90059-R 1.5 CFM VACUUM PUMP (SINGLE STAGE) PUMP, VACUUM, MASTERCOOL 118LPM 2-STAGE R12/R134A NISU

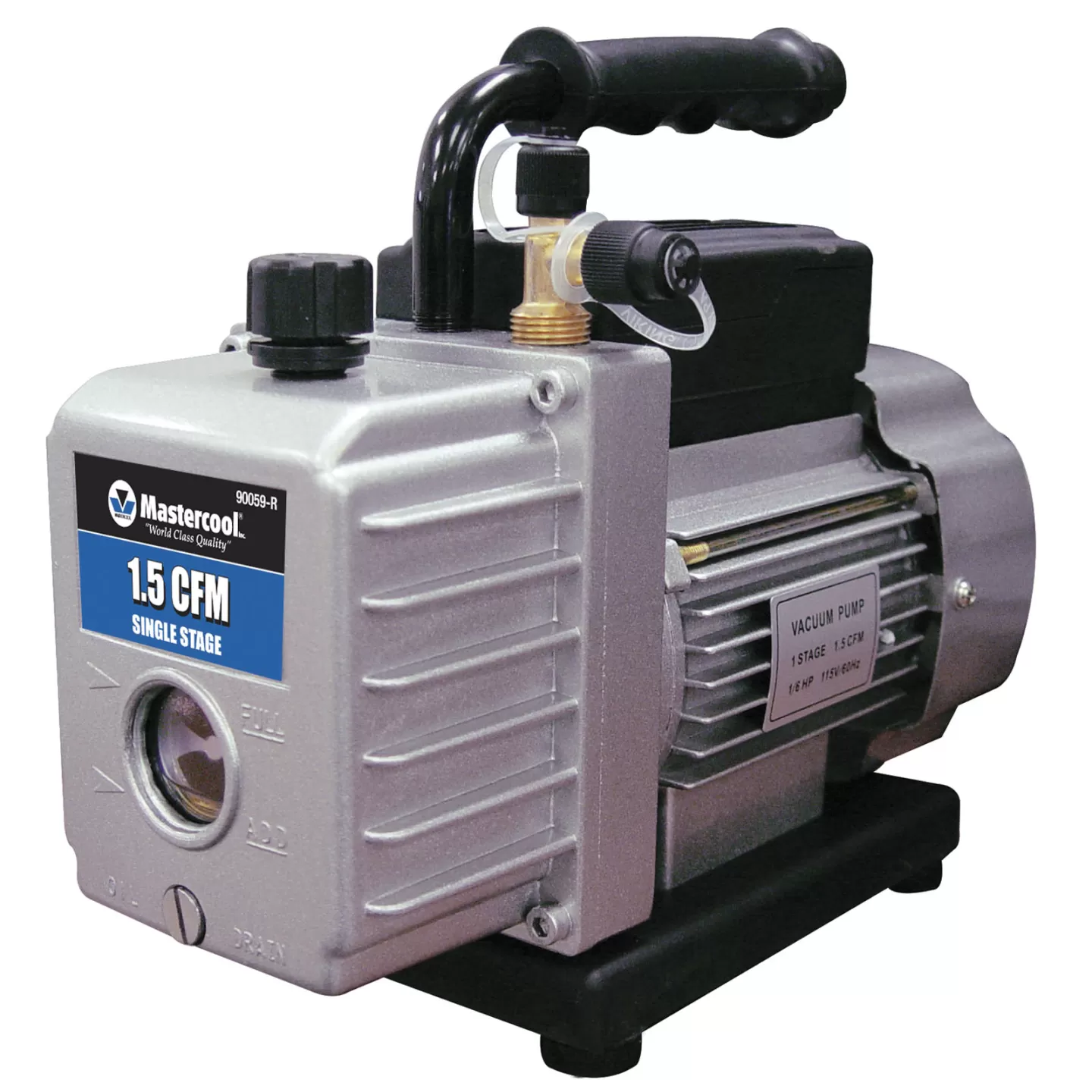

- Κωδικός Προϊόντος: 90059-R 1.5 CFM VACUUM PUMP (SINGLE STAGE)
Εκδήλωση ενδιαφέροντος
Συμπληρώστε τη παρακάτω φόρμα προκειμένου να σας ενημερώσουμε για τη τιμή και τη διαθεσιμότητα του επιλεγμένου προϊόντος.
Περιγραφή
PUMP, VACUUM, MASTERCOOL 118LPM 2-STAGE R12/R134A NISU
80807211 90 lt two-stage vacuum pump
90059-R
1.5 CFM VACUUM PUMP (SINGLE STAGE)
90059-R
1.5 CFM VACUUM PUMP (SINGLE STAGE)
Product Description
- High volume fan provides cool air motor and pump
- Vapor discharge/oil fill port, easily removable, contains internal check valve to prevent escape of liquid oil
- Non-slip cushion handle
- Includes T-fitting with 1/4″ flare and 1/2″ acme ports
- Cooling fins to keep temperature cooler during extended motor operation
- Manifold valve isolates pump from the system testing for leaks
SPECIFICATIONS:
- No. of Stages: 1
- Free Air Displacement: 1.5 CFM
- Ultimate Vacuum: 75 Microns
- Pump Motor: 1/6 HP
- Pump Speed: 3450 RPM
- Electrical Specs: 110 V/60 Hz
- Shipping Weight: 16 lbs (7.25 kg)
- Dimensions in cm: 29.5 x 11.5 x 21.5 x 18
* PLEASE NOTE: The micron readings on all vacuum pumps represent optimal laboratory conditions. Field conditions may vary from these readings.
Also Available:
90059-R-220
- No. of Stages: 1
- Free Air Displacement: 35 lit/min, 42 lit/min
- Ultimate Vacuum: 75 Microns
- Pump Motor: 1/6 HP
- Pump Speed: 2850/3450 RPM
- Electrical Specs: 220 V/50 Hz, 220 V/60 Hz
- Shipping Weight: 16 lbs (7.25 kg)
- Dimensions in cm: 29.5 x 11.5 x 21.5 x 18
